How To Connect Starter Solenoid Wires: Complete SR-JD Wiring Guide (2026 Edition)

Understanding how to connect starter solenoid wires correctly is essential for restoring reliable engine cranking on automotive, marine, and outdoor power equipment. Whether you are wiring a standard integrated starter solenoid or installing an auxiliary starter relay assist harness—frequently designated as an SR-JD kit to resolve persistent click-no-crank symptoms—identifying terminals and maintaining circuit integrity prevents electrical fires, burned contacts, and failed ignition switches.

Starter solenoids act as high-amperage electromagnetic switches. Turning the key or pushing the start button sends a low-current signal to energize an internal coil. This coil pulls an iron plunger forward, closing heavy copper contacts to deliver hundreds of cold-cranking amps directly from the battery to the starter motor armature while simultaneously engaging the drive pinion gear with the flywheel ring gear.

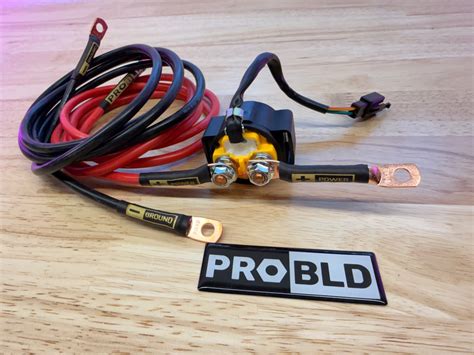

Starter Solenoid Terminal Identification and Pinout Standards

Proper wire placement requires identifying the stamped terminal markings on the solenoid casing. Solenoids generally feature either three terminals, four terminals, or an auxiliary relay configuration with standard ISO automotive relay numbering.

Main Power Terminals (High Current)

• Battery Positive Terminal (B, BAT, or 30): The largest threaded copper stud on the solenoid (typically 5/16-inch, 3/8-inch, or M8/M10 thread size). It connects directly to the positive battery post using heavy-gauge battery cable (2 AWG to 2/0 AWG for automotive; 4 AWG to 6 AWG for small commercial equipment). Alternator output wires and main chassis electrical distribution feeds often share this stud.
• Motor Output Terminal (M or MOT): The second large threaded stud, typically located closest to the starter motor casing. On integrated starters, a thick woven copper braided strap permanently routes power from this stud into the starter motor field coils. On remote solenoids, a separate heavy cable runs from this terminal to the isolated starter motor stud.

Control and Ignition Terminals (Low Current)

• Start/Switch Terminal (S, 50, or START): A smaller threaded stud (typically #10-32, M5) or a male spade terminal. This post receives the 12-volt positive trigger signal from the ignition switch or neutral safety switch when the key rotates to the momentary crank position.
• Ignition Bypass Terminal (I or R): Found primarily on four-post solenoids and older breaker-point or early electronic ignition setups. This terminal provides full, un-ballasted battery voltage to the ignition coil during cranking to ensure hot spark during cold engine starts, turning inert once the key returns to the run position.
• Chassis Ground: On three- and four-post grounded-case solenoids, the steel bracket or mounting base serves as the direct negative ground path. On isolated-ground solenoids, a dedicated negative terminal (often stamped G or marked with a negative symbol) requires a dedicated ground wire back to the engine block or frame.

Solenoid and Auxiliary Relay Wiring Specifications

The following technical reference outlines terminal markings, wire gauges, functions, and typical circuit destinations across standard solenoids and SR-JD style starter relay helper harnesses.

Step-by-Step Procedure to Connect Starter Solenoid Wires

Executing clean, secure connections prevents excessive voltage drops and thermal runaway. Follow this comprehensive procedure to wire a standard starter solenoid or an auxiliary assist harness.

Step 1: Disconnect Power and Verify Safety

Park the equipment on a level surface, set the mechanical parking brake, and confirm that the transmission or hydrostatic drive is locked in neutral. Wear safety glasses and remove all metallic jewelry.

Disconnect the negative battery cable first using an insulated wrench and isolate the terminal away from the battery post. Disconnecting the negative cable removes the complete chassis ground circuit, preventing accidental arc-welding or tool grounding while handling positive leads on the solenoid.

Step 2: Inspect and Clean Wire Terminals

Prior to installation, examine all wire terminals for internal green copper corrosion, cracked insulation, or loose mechanical crimps. Clean mating surfaces down to bare metal using an abrasive pad or wire brush. Corroded terminals introduce resistance, leading to massive voltage drops under cranking loads that exceed 150 amps.

Step 3: Connect the Primary High-Current Cables

1. Mount the starter solenoid securely to the starter frame or equipment bracket to ensure solid mechanical grounding if the unit relies on case grounding.
2. Slide the main positive battery cable eyelet over the large BAT stud. If the vehicle or machine uses an alternator charge lead or main fuse box feed from the starter, place those secondary eyelets on top of the main battery cable eyelet.
3. Thread the brass or copper lock washer and nut onto the stud. Torque standard 5/16-inch studs to 85–115 inch-pounds (9.6–13.0 Nm). Do not over-torque, as internal bakelite or plastic insulator caps can fracture, causing internal shorts.
4. On remote-mounted solenoids, connect the heavy cable running from the M terminal to the starter motor input stud, securing it with its corresponding lock washer and nut.

Step 4: Wire the Control Circuit (S and I Terminals)

1. Identify the trigger wire originating from the ignition key or safety interlock switch. Connect this lead firmly to the small S terminal using a properly sized ring terminal or heavy-duty locking female spade connector.
2. If working with a classic dual-small-post solenoid equipped with an I terminal, connect the auxiliary ignition wire directly from the ballast resistor bypass lead to the I post. If the application uses modern electronic ignition and leaves this circuit unused, leave the I terminal open.

Step 5: Integrate an SR-JD Starter Relay Assist Kit (If Applicable)

Small diesel and gas equipment frequently suffer from voltage loss through old key switches, safety switches, and lengthy wire runs, creating a condition where the main solenoid only clicks. Installing an SR-JD auxiliary relay provides a clean 12-volt bridge to the starter solenoid S terminal:

1. Mount a 4-pin or 5-pin 12V 40A waterproof relay close to the starter.
2. Disconnect the original factory start wire from the solenoid S terminal and attach it directly to relay pin 86 (coil trigger).
3. Connect relay pin 85 to a reliable clean chassis or engine ground point using 16 AWG wire.
4. Run a fused 12 AWG or 14 AWG wire from the large solenoid BAT stud directly to relay pin 30 (high-current feed).
5. Run a new 12 AWG or 14 AWG wire from relay pin 87 directly to the starter solenoid S terminal.

Critical Installation Rule: Always secure all wire runs with heat-resistant, UV-rated loom clamps at least two inches away from exhaust manifolds, turbochargers, and sharp frame edges. Excessive heat breaks down cross-linked polyethylene insulation rapidly, resulting in direct battery short-circuits.

Step 6: Reconnection and Operational Verification

Reattach the positive battery cable if it was unfastened, followed by the negative battery cable. Tighten battery terminal clamps to factory specifications (typically 50–70 inch-pounds).

Turn the ignition switch to the crank position while checking for immediate, smooth starter motor engagement. Measure the voltage drop across the starter terminals during cranking using a digital multimeter; total voltage drop between the battery positive terminal and the starter solenoid BAT stud should not exceed 0.5 volts DC.

Technical Troubleshooting: Solenoid Wiring and Voltage Drop Diagnostics

When a freshly wired starter fails to turn the engine over, systematic diagnostic testing isolates the failure between control wiring, high-amperage cables, and internal solenoid components.

Diagnostic Check Sequence: Battery Voltage (Resting >= 12.6V) -> Trigger Signal (>= 10.5V at S Terminal during crank) -> Solenoid Plunger Pull-In -> Main Motor Spin

Addressing the "Click-No-Crank" Condition

A rapid or distinct single click typically signals that the internal pull-in coil has energized, but insufficient current is reaching the main contacts or the starter motor windings.

• Low Trigger Voltage: Check the voltage at the S terminal while the key is turned to the start position. If reading falls below 10.2 volts DC, safety interlocks (seat switch, PTO clutch, brake safety) or an aging ignition switch are causing high resistance. Installing the SR-JD auxiliary relay bypasses this drop completely.
• High-Resistance Ground: Place the multimeter negative lead on the starter motor housing and the positive lead on the negative battery post. Crank the engine. If the meter displays more than 0.2 to 0.3 volts, the engine block ground strap is corroded, loose, or improperly bonded to the chassis.
• Oxidized Solenoid Disk: If battery voltage and trigger signal are both verified above 11.5 volts under load, but the motor fails to turn, the internal copper contact disc inside the solenoid is pitted or oxidized, preventing current transfer between the BAT and M terminals.

Comparison: Standard Integrated Solenoids vs. Remote/Auxiliary Solenoid Configurations

Equipment designers utilize varying starter configurations depending on engine displacement, packaging space, and electronic control architecture.

Integrated Starter Solenoids

Integrated solenoids mount directly on top of the starter motor casting. They perform two tasks: mechanically sliding the starter bendix into the flywheel via a pivot lever and completing the high-amperage electrical connection.

• Advantages: Compact footprint, integrated shift linkage ensures mechanical engagement before electrical power is applied, standard across most modern automotive platforms.
• Disadvantages: Exposed directly to engine block and exhaust manifold heat, prone to thermal soak and premature solenoid contact oxidation.

Remote Solenoids and SR-JD Assist Relay Systems

Remote solenoids (often found on marine engines, classic Ford platforms, and outdoor equipment) mount to a firewall, inner fender, or frame rail, separating the switching mechanism from extreme engine heat.

• Advantages: Cooler operating temperatures, easy diagnostic access, serviceable independent of starter motor removal.
• Disadvantages: Requires additional heavy-gauge battery cables, relies on an internal starter inertia drive (bendix) or dual-solenoid configurations to engage the engine flywheel.

Safety Standards and Mechanical Precautions

Working on primary starting systems involves working with unrestricted battery capacity capable of producing several thousand amperes in a dead-short scenario. Adhere strictly to these shop safety standards:

1. Fuse Protection for Secondary Circuits: Any secondary power feeds leaving the large BAT terminal (such as auxiliary fuse panels or SR-JD relay feeds) must incorporate an inline fuse or fusible link located within 12 inches of the starter terminal.
2. Strain Relief: Fasten thick cables to structural brackets using insulated P-clips. The continuous vibration of diesel or heavy twin-cylinder engines can cause unsecured cables to fatigue, loosen terminal nuts, and fracture solenoid end-caps.
3. Dielectric and Corrosion Inhibitors: After tightening all terminal nuts to final mechanical torque, spray the bare terminals with a dedicated commercial battery terminal protector or non-conductive sealant to lock out moisture and prevent road salt oxidation.

Frequently Asked Questions

What happens if you wire the starter solenoid backwards?

Connecting high-amperage battery leads to the wrong terminals can either cause the starter motor to spin continuously without turning off or trigger a dead short that melts the wiring harness. Reversing the small S and I terminals can send full unmetered current back through sensitive ignition modules or prevent the solenoid from pulling in altogether.

Connecting the positive battery cable directly to the motor output stud causes the starter motor to spin continuously without engaging the engine flywheel. Connecting the high-current cable to the low-amperage trigger terminal will instantly melt the small ignition harness or blow main fusible links.

What is the purpose of an SR-JD starter relay kit?

An SR-JD relay kit eliminates click-no-crank issues caused by voltage drop across complex ignition and safety interlock wiring. It uses the existing low-voltage key switch signal to trigger an automotive relay, which pulls full 12-volt battery power directly to the starter solenoid S terminal.

Over years of service, tractor safety switches, key cylinders, and wire connectors develop contact resistance. When cranking, the circuit cannot pass the 10 to 15 amps required to energize the starter solenoid coil. The assist relay requires only 0.2 amps to trigger, solving the starting failure without replacing the entire vehicle harness.

Why does my new starter solenoid only click when I turn the key?

A single loud click indicates that the solenoid coil is pulling its internal plunger, but insufficient electrical current is passing to the starter motor armature. This is most commonly caused by a weak battery, dirty or loose battery terminal clamps, or a poor chassis-to-engine ground.

Inspect battery health first under a true carbon-pile load test. If the battery holds above 9.6 volts under a 200-amp load, use a digital multimeter to measure voltage drop along both the positive battery cable and the negative engine ground cable during a cranking attempt.

How do I know which small terminal is S and which is I?

On standard four-terminal solenoids, the terminals are almost universally labeled with raised stamped letters "S" and "I" adjacent to the posts. If the markings are illegible, use an ohmmeter to measure resistance from each terminal to the metal mounting bracket.

The S terminal connects internally to the pull-in coil and will register low resistance (typically 0.4 to 2.0 ohms) to the solenoid casing ground. The I terminal connects to an isolated internal contact plate and will read as completely open (infinite resistance) to ground until the solenoid is actively energized.

Can I test a starter solenoid without installing it on the engine?

Yes, you can bench-test a starter solenoid using a fully charged 12-volt battery and a set of heavy-duty jumper cables. Clamp the negative jumper cable to the starter housing and the positive cable to the large BAT terminal, then bridge a small jumper wire between the BAT terminal and the S terminal.

When the jumper wire touches the S terminal, the solenoid should decisively push the starter drive gear forward and begin spinning the motor vigorously. If the gear extends but does not spin, or if the unit only hums without mechanical motion, the solenoid contacts or starter motor windings are defective.

Final Service Recommendations

Ensuring high-efficiency electrical delivery requires using properly sized, marine-grade tinned copper conductors, hydraulic-crimped terminal ends, and adhesive-lined polyolefin heat shrink. If you are experiencing ongoing ignition switch failures or intermittent starting delays, verify your circuit drop with a multimeter and install a dedicated 40-amp starter assist relay to preserve the longevity of your machine's starting system.
